EMC shield clamps for 35 mm top hat DIN rail, pluggable
with or without integrated strain relief
EMC shield clamps are used, where the shield of cables must be connected to the earth potential. They are easy to use and effective in earthing single cable shields.
When using types with integrated strain relief cables can be fixed via the cable jacket using cable ties. Thus strain relief in accordance with EN 62444 is achieved. We also offer EMC shield clamps with double strain relief function acc. to PROFINET installation guidelines.
Due to its special design the clamping ranges of the MSKL are very large while the dimensions are comparatively small. (Example: MSKL 3-12, assembled with a 12 mm cable shield: width 26.25 mm).
The staggered arrangement of the extremely slim shield clamp SFS|SKL maximises space utilisation. Suitable for applications that require EMC shielding close to connection points or controller inputs.
The shield clamps can be easily attached by snapping them onto 35 mm top hat DIN rails.
Part No.
37620.150
Specifications
Properties
vibration proof
Advantages and benefits
Partially with integrated strain relief
Large contact area
Shield contact and strain relief separated
Quick assembly without tools
The spring design requires no adjustments and will permanently maintain contact to the cable shield
Designed for high density applications
Shock and vibration resistant, maintenance free
Integrated double strain relief function acc. to PROFINET installation guidelines
Product types and sizes

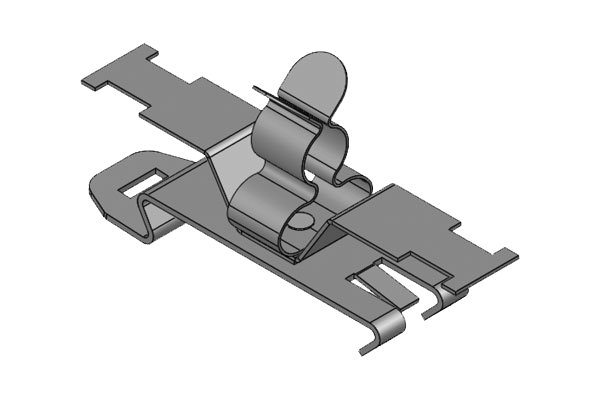

SF2Z-M|MSKL 3-12
Part No.
37620.150
EAN
4251269321146
Package quantity
10
Max. shield diam.
12 mm

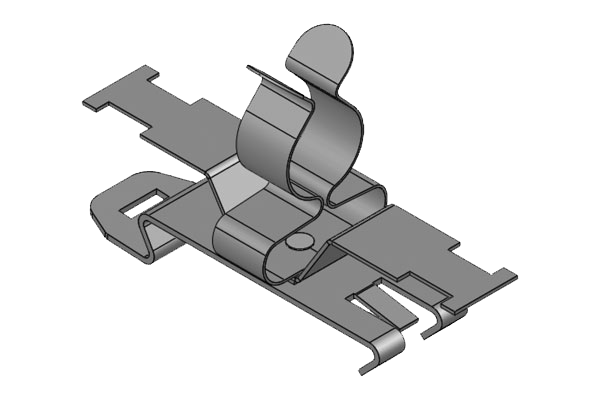

SF2Z-M|MSKL 8-18
Part No.
37622.150
EAN
4251269321153
Package quantity
10
Mounting options
Snap-in
